• Before purchasing a new or replacement windshield, it is essential to take proper measurements for an exact fit. If you have your old windshield, you are in the right place.
  • If you don’t want to go through the measuring process, and would rather ship your shield directly to us, please complete the Shield Request Form.
  • If you do not have an existing shield on your boat and would like a new one altogether, see the Measuring a Console page for instructions on how to measure your console.
  • Windshields can be simple or complicated. In either case, there are common measurements that must be taken in order to ensure a proper fit. To the right is a schematic of a typical windshield illustrating required measurements.

Please Note: Before proceeding please be sure you have searched our website for your shield before starting this process to save time. If you submit a Quote Form for a Windshield that we already offer on our website, we will redirect you to that Windshield to order it there. To search for your Windshield please click here:

MARINE BOAT WINDSHIELD MANUFACTURERS

Let’s Start Measuring

The inside measurements are as follows:

F This is the center vertical height of the windshield.
G Base of windshield front to back.
H Spread of windshield in the back at the base.
I Inside measurement at the top. (Measured after the curve turns into the side panel).
J Side of windshield front to back. ( Measured from front face of shield until the slope downward).
K Inside length of shield. This is measured after the curve turns into the side panel).

About Radius Corners

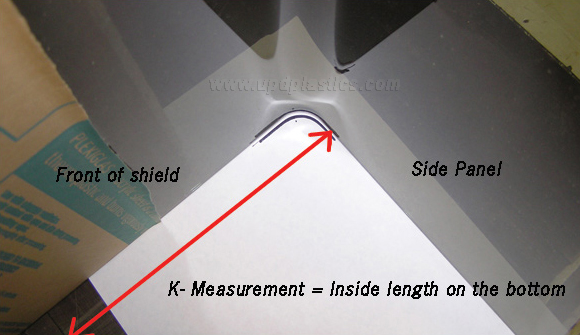

When measuring the inside length of the windshield it can be confusing where to start. Here we will clear up the confusion and teach you how to measure the inside length of your boat windshield. The measurement must be made after the curve is complete and it meets the side panel of the shield. This is important because this is the width of your console. (See the second picture on the right.)

Knowing Where the Radius Ends

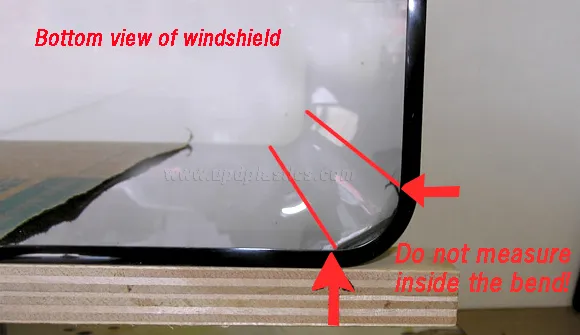

In the third image to the right, you can see where the heated bends ends, and the natural factory surface starts. The black arrow is the point where you start your measurement. Never measure into the curves!

Measuring the Corner Radius

To the right is an example of how to determine how much of a radial curve your curved boat windshield has. Simply place the Printable Corner Radius Chart on a table and put your windshield on top of it as illustrated in the picture to the right. Move the shield around until you see the curve of your shield match one of the template’s radius lines. When you get the match just look to see what size radius the windshield dimension chart says it is. In this case, it is 1/2″. This is extremely important, as this curve needs to match the curve on you console.

Note: Please be sure to set your “Page Scaling” to “None” in your “Print Dialog” box under “Page Handling” or the windshield radius dimension chart will print at the wrong scale and you will get a wrong radius reading (link below).

Does Your Windshield Tilt Back?

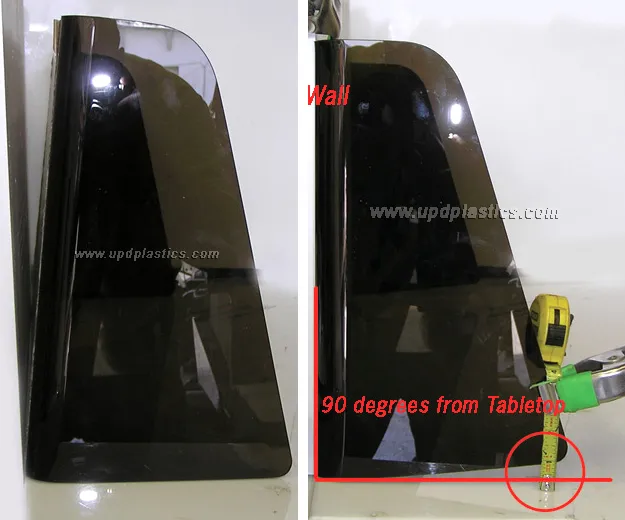

Some windshields tilt back. Oftentimes it follows the tilt of the console, but sometimes it does not. The adjoining image on the left shows a typical windshield that is tilted back about 7 degrees.

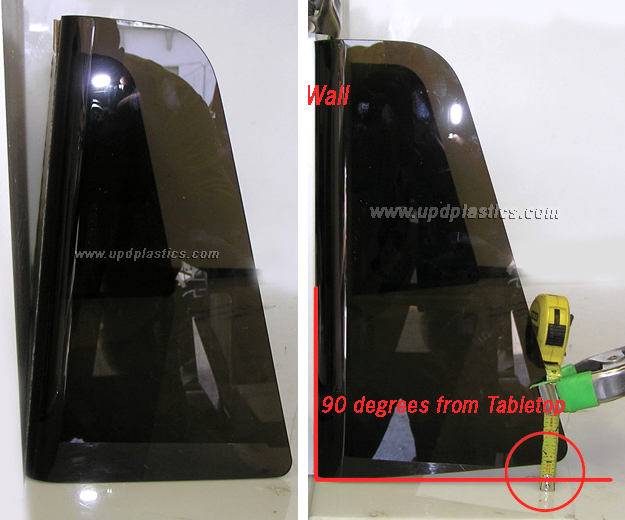

The image on the right also shows how to determine the amount of tilt on the base of your shield if you do not have an angle gauge. Simply put the front face of your windshield up against a wall or any two surfaces that are 90 degrees to each other. Then get a tape measure and see how much the shield lifts off the table top at the back of the windshield. In this example, it is about one inch.

Windshield Thickness Options

You can choose between the following sizes:

  • 3/16″
  • 1/4″
  • 3/8″ thickness acrylic
Do you need Spacers?…

Spacers between the console and the shield are very important. They allow for water flush out of debris, act as a shock absorber, and take up space for tolerance issues in measuring during installation.

A 1/4″ spacer is typical in most cases. Pontoon and some bass Boat style consoles that use quick release fasteners do not use spacers.

Available Spacer sizes on the Quote Form are:

1/8″
1/4″
3/8″
1/2″
